pile breaker hydraulic rock breaker for sale

FOB Reference Price:Get Latest Price
$8,500.00 - $35,000.00 / Sets | 1 Set/Sets pile breaker hydraulic rock breaker for sale (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
LYDITE
Model Number:
LYD MK180S
Name:
pile breaker hydraulic rock breaker for sale
Product Material:
steel
Power source:
excavator or crane
weight:
278kg
Diameter:
200-1200
Condition:
New
Type:
pile cutting machine
After service:
six month
color:
optional
Supply Ability
Supply Ability:
25 Set/Sets per Month pile breaker hydraulic rock breaker for sale
Packaging & Delivery
Packaging Details
Pcking with wooden box
Port
shanghai
Video Description

pile breaker hydraulic rock breaker for sale

Working principle:

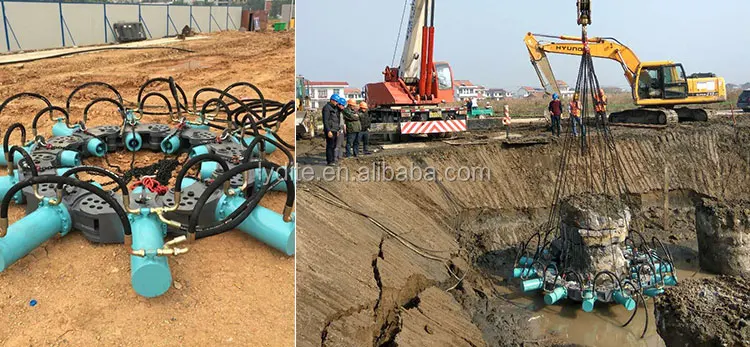

Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.

Engineering application scope:

Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-800mm and hydraulic square pile breaker is suitable for square pile from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.



Product advantage:

*It is the most advanced pile breaker and can achieve high efficiency, low noise in pile broken.

* It has the advanced modularization and break different diameter pile by different number of modular combination.

* It has high cost performance, low operating cost and its cost performance is nearly the same with the foreign products.
*  It operates easily and don’t need any professional skill, besides, it operates very safely.
* It can be connected to a variety of engineering machinery to make achieve of products’ commonality and economical efficiency. It also can be hanged in the excavators, cranes and telescopic arm, etc.
* High life design can bring you the best benefits.


Product parameters

Module

Number

 489101112131415161718

Combination

total weight

kg

Remark

 Need to

add the

connections

1600

26242952328036083936426445924920524855765904

Pile diameter

range

mm200-800600-800800-10001000-11501150-13001300-15001500-16501650-18001460-19701620-22002200-23602360-2500

Hydraulic

excavator

T20-30T30-40THydraulic system/pump station
Max Thrust300KN

Max Cylinder

required

20L/min

Machinery

Tonnage

≥20t

Max Cylinder

 Trip

300mmChisel diameter110mm

Single module

weight

328kg

Max Cylinder

Pressure

30MPaMax Hoist Capacity≤500mm

Single

module size

885*780*340mm

Trade show



Company Information

Wuxi Lydite Trade Company was founded in 2000, We are specialize in machine, such as hydraulic earth drill log grapple, plaster machine, lawn mower, excavator ripper, irrigation machine and so on. We have own factory , we have good after-sale. we can make machine as your required as soon as possible, and our machine all in factory price, you can get high quality and cheap machine, welcome to our company.

Our Team



Packaging & Shipping





FAQ

1.When you will send parcel?

A:We will send parcel as soon as possible after payment confirmed.



2.When i will receive parcel?

A:We prefer express delivery, usually takes 3-7 days to delivery by DHL/FedEx/UPS.

Container cargo will send by sea freight FOB/CIF, delivery time depends on destination port.



3.Which payment your company accept?

A:We accept T/T,  Western Union, L/C payment.



4.What warranty i have?

A:One year warranty, not included human damaged.
